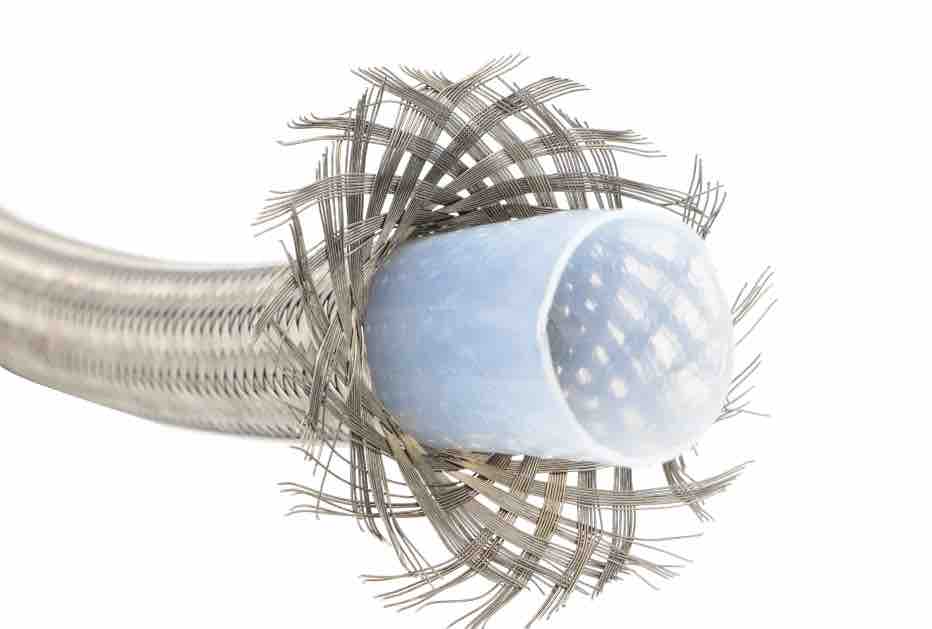

Stainless steel overbraided PTFE hose is constructed of virgin PTFE with stainless steel wire braid reinforcement jacket. The PTFE core is inert and offers long flexural life, low permeability, non-flammability, and the lowest coefficient of friction of any solid material. The stainless steel overbraid permits higher pressure uses and generally protects the core. Optional silicone jacketing offers protection from high temperatures during handling and keeps the outer surface clean and smooth.
KEY FEATURES
*True I.D. PTFE Smooth Core offers maximum flow;
*Stock sizes: 1/4 in. through 1 in.;
*General temperature range: -60°C to 260°C
*Imparts no taste or odor to critical streams
*Easily cleaned or sterilized by autoclave, steam, or detergent
*Anti static inner bore available
*Optional silicone jacketing makes stainless steel reinforced hose easier to handle by offering heat protection
*Silicone jacketing also provides a smooth outer surface to eliminate particle entrapment for sanitary conditions
*Full line of crimp fittings offered
*Custom lengths, sizes, other overbraiding materials, special cleaning, and/or packaging is available
*Custom crimped-on or flare-through assemblies offered
*Add stainless steel armor casing or cuffs for an extra layer of protection from crushing, kinking, harsh environments, and abrasion while still allowing flexibility
|
SS BRAID P/N |
ID
mm |
OD
mm |
WP
@23°C |
Minmum
Bend Radius |
Vacuum |
|
HPST-0125 |
3.2 |
6.3 |
207 |
39 |
-1 |
|
HPST-0188 |
4.8 |
8.0 |
207 |
51 |
-1 |
|
HPST-0250 |
6.3 |
9.4 |
207 |
76 |
-1 |
|
HPST-0313 |
8.0 |
11 |
207 |
102 |
-1 |
|
HPST-0375 |
9.5 |
13 |
138 |
127 |
-1 |
|
HPST-0500 |
12.7 |
16.0 |
120 |
165 |
-1 |
|
HPST-0625 |
15.9 |
19.3 |
103 |
191 |
-0.8 |
|
HPST-0750 |
19.0 |
22.4 |
69 |
216 |
-0.8 |
|
HPST-1000 |
25.4 |
28.7 |
69 |
305 |
-0.6 |
|
HPST-1250 |
31.7 |
35.8 |
69 |
356 |
-0.6 |
|
HPST-1500 |
38.1 |
43.9 |
62 |
381 |
-0.5 |
