Suction and delivery hose designed according to EN 12115 standards for chemicals and solvents, except for
chlorine trifluoride, chlorine and fluorine gas, oxygen difluoride, phosgene and molten alkalis (for ex. sodium).
Hose resistant to high temperatures, used as connection between pipes and fixed equipments. Designed for
the chemical industry, foodstuff, pharmaceutical and cosmetic industry, where a flexible connection is
required. The hose is produced with high quality elastomers, with excellent chemical and mechanical
properties. Phthalates free tube, tested in compliance with 1907/2006/CE (REACH). Tested in compliance
with USP XXXVI class VI, not cytotoxic according to ISO 10993 Section 5:2009. Not intended for use as an
implant material. Not suitable for blood or human fluids.

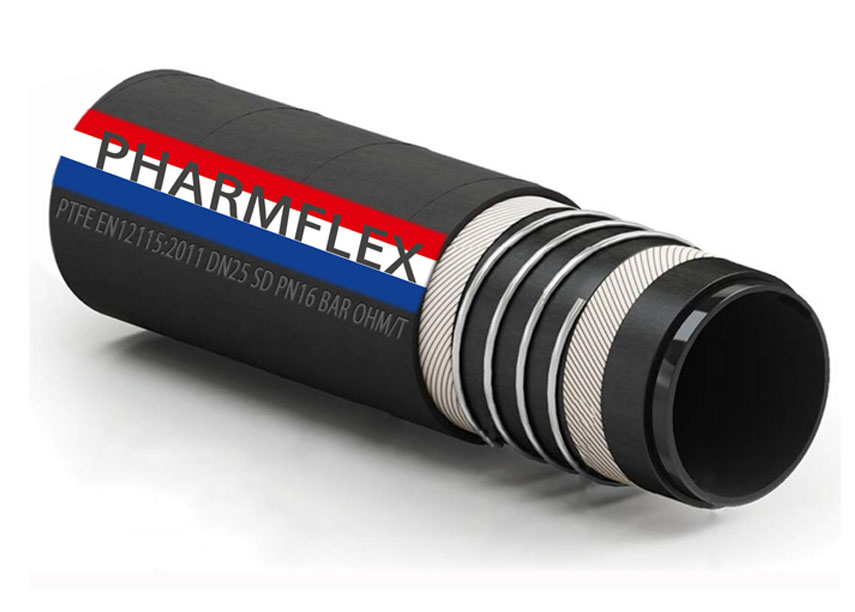

DESCRIPTION
Tube
TEFLONT PTFE, co-extruded clear/black pigmented, smooth, phthalates free, tested in
compliance with 1907/2006/CE (REACH). TEFLONT PTFE is a polymer with excellent
resistance to high temperature, mechanical stress and to oxidation. It complies with
FDA 21 CFR 177.1550 standards, USP XXXVI class VI, ISO 10993 Sections
5,10,11:2009, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE, 3A Sanitary
Standard Class II
Reinforcement
synthetic plies, galvanized wire helices, a/s copper wires to discharge static electricity
Cover
smooth, EPDM, black, conductive, abrasion, ageing and ozone resistant, cloth finish
Sterilization
refer to guidelines for cleaning and sanitizing on PHARMFLEX website
Marking
red/white/blue transfer tape PHARMFLEX PTFE CHEM
Embossed stripe according to the Norm EN 12115
PHARMFLEX PTFE EN12115:2011 DN SD PN 16 BAR Q Q/Y
Temperature range
-40°C / +150C ( -40°F / +302°F ) The operating temperature of the hose is
directly dependent upon the specific fluid been conveyed and the length of time
the fluid is in contact with the hose
Vacuum
FULL VACUUM
Electrical properties
type 22 according to
EN12115
|
P/N |
ID
(mm) |
OD
(mm) |
WP
(bar) |
Bend Radius
(mm) |
Vacuum
(Bar)
|
|
HPGP-B-050 |
13 |
25 |
16 |
90 |
-1 |
|
HPGP-B-075 |
19 |
31 |
16 |
130 |
-1 |
|
HPGP-B-100 |
25 |
37 |
16 |
170 |
-1 |
|
HPGP-B-125 |
32 |
44 |
16 |
215 |
-1 |
|
HPGP-B-150 |
38 |
51 |
16 |
255 |
-1 |
|
HPGP-B-200 |
51 |
66 |
16 |
330 |
-1 |
|
HPGP-B-250 |
64 |
80 |
16 |
430 |
-1 |
|
HPGP-B-300 |
76 |
91 |
16 |
510 |
-1 |
|
HPGP-B-400 |
102 |
116 |
12 |
675 |
-1 |
